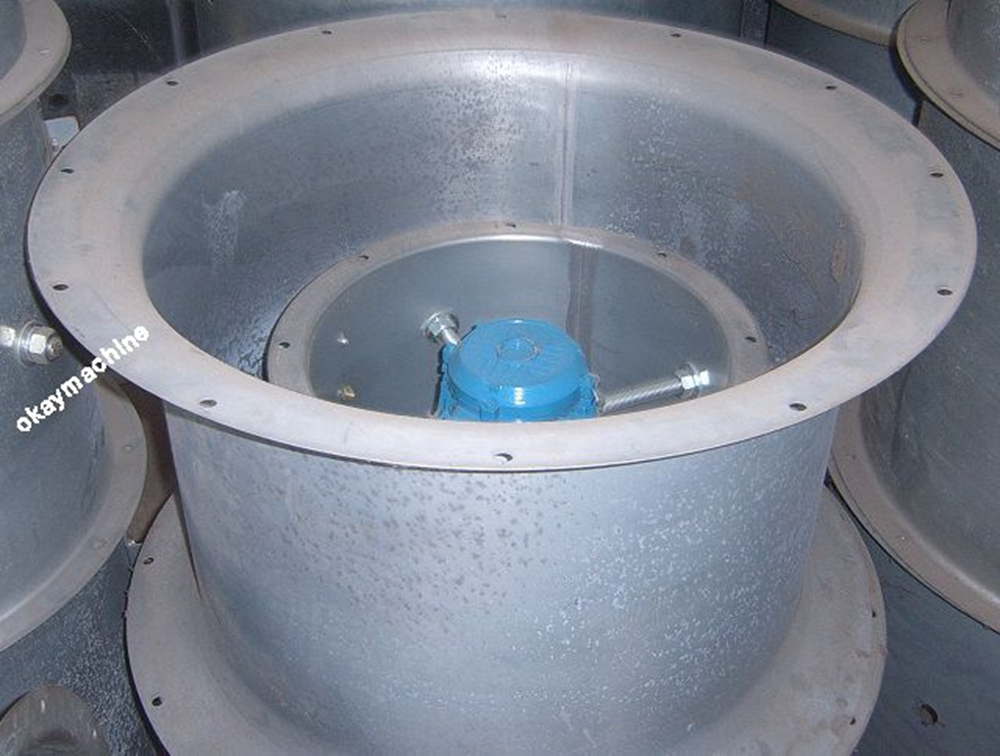

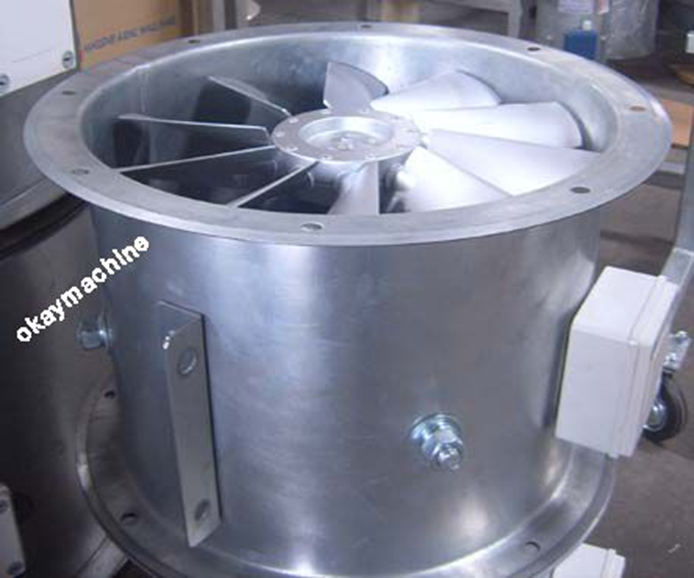

Okay FB2008 Flanging Machine is specially designed for the flanging of the airduct pieces for fan industries. Specially for the auto flanging, punching and forming for the stiffed edges for the barrels, airducts, pipes for the fan industies. The machine can flange any angle and arc no more than 90º.The machine is centralized controlled bySiemens 828D high_end CNC system. It can not only be easily operated and with high efficiency, but also the manufactured parts with high standard level and universalization.The machine designed with novel ideas; can run smoothly and high automation.

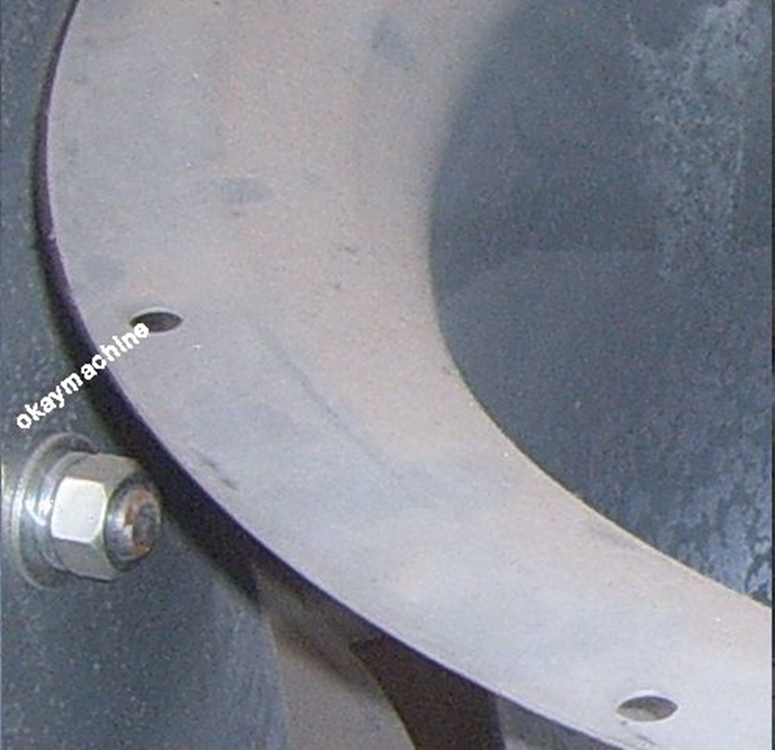

  The flanging is fulfilled by cnc system insert step movement. The programing is edited by our own develped software. It is convinient and reliable. The punching is driven by hydaulic cylinder. The pitch dividing is controlled by servo motor.

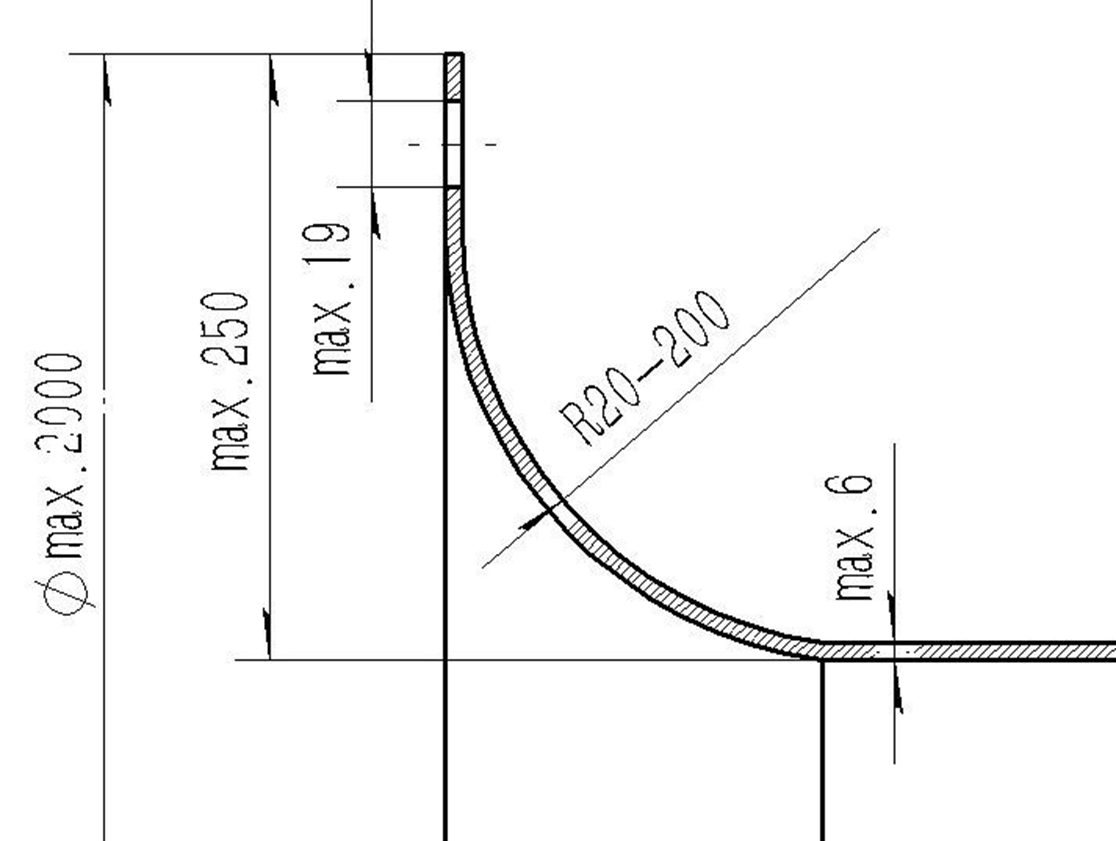

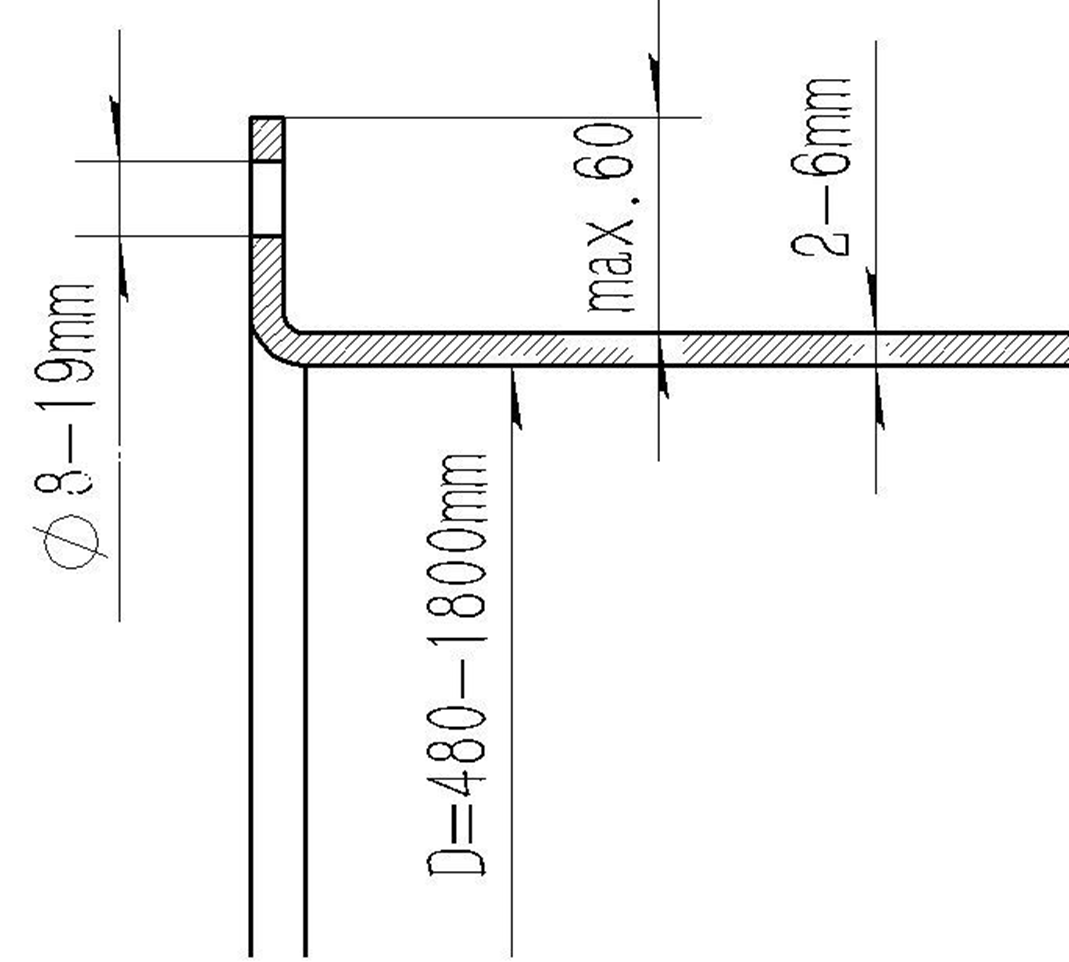

 Max Airduct Diameter                             1800mm

 Max Flange diameter                               2000mm

 Min Airduct Diameter                               480mm

 Max Length                                 1500mm

Min length                                     200mm

Max thickness （Carbon steel）             8mm

Max Hole Diameter                             19mm

The Mold Expander stroke                     30mm

The Mold Expander Force                        2000KG

Hydraulic Station Power                            22KW

Assistant Drive Power (Hydraulic Motor)                 150NM

Spinning Wheel driving Motor                  Siemens 1FK7 Servo Motor

Driving System                                            Siemens S120 Series

Control system                                           Siemens 828D CNC system

Punching Power                                         Hydraulic

Spindle Speed                                           50-300 rpm

Hydraulic Tank Capacity                          220L

Cooling System for Hydraulic Oil                    Atuomatic control

Diemension                                6100 (L)*3700 (W)*2800 (H)

Power Consumption                  45KW

Weight         12000kg
