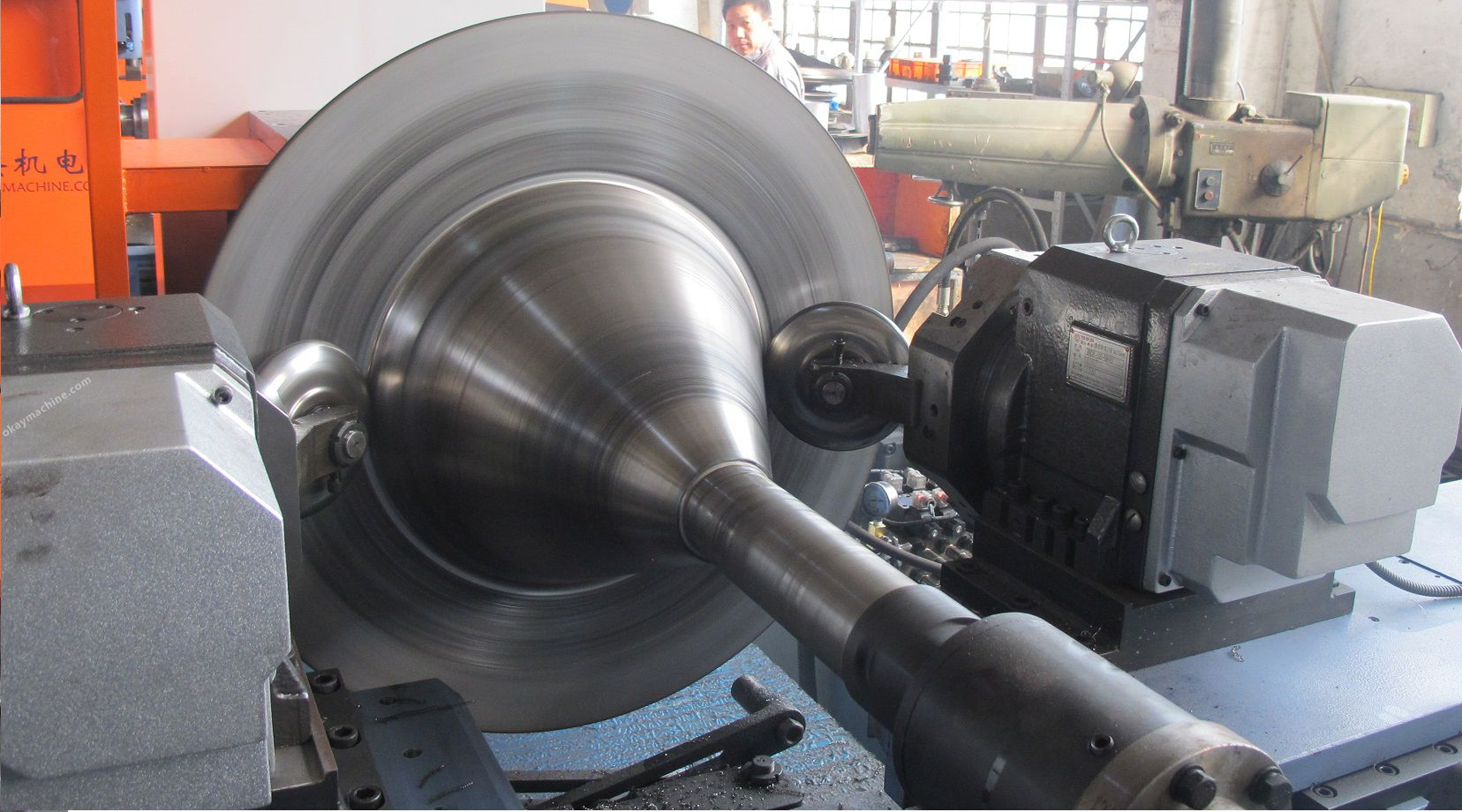

This machine is mainly used for cold spinning forming for carbon steel, aluminum, stainless steel and other materials. It is widely used in the fields like hardware, automobiles, fans, military & construction machinery, etc. The machine can fufil the spinning, shrinking, expanding, trimming, curling, turning in one process. Comparing with the traditional drawing process, Spinning can dramatically save the cost for moulds, shorten the cycle for developing new products and reduce the defects for many paths when deep drawing. The spinning has great advantages like low cost, and rapid to develop new products and good surface of the finial products, etc.
     We adopt modular designation in our machine, therefore, have the advantages of easy operation, maintenance and repair.
     We also designed and developed the first domestic spinning programming software,《SPINNINGCAD》V2.0. It can help you programming for the new spinning products with conveniences, speediness and no errors.

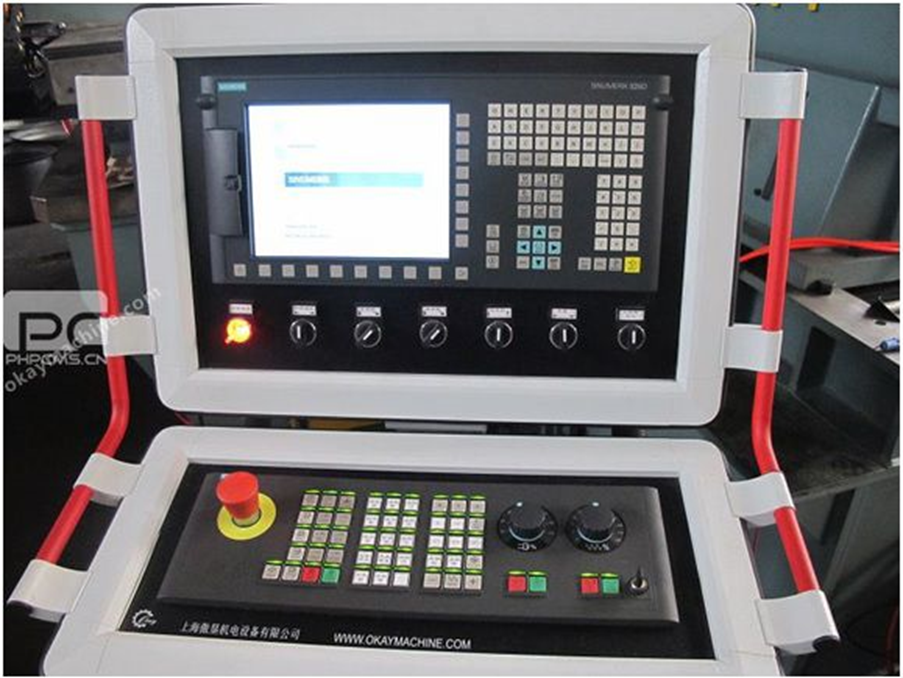

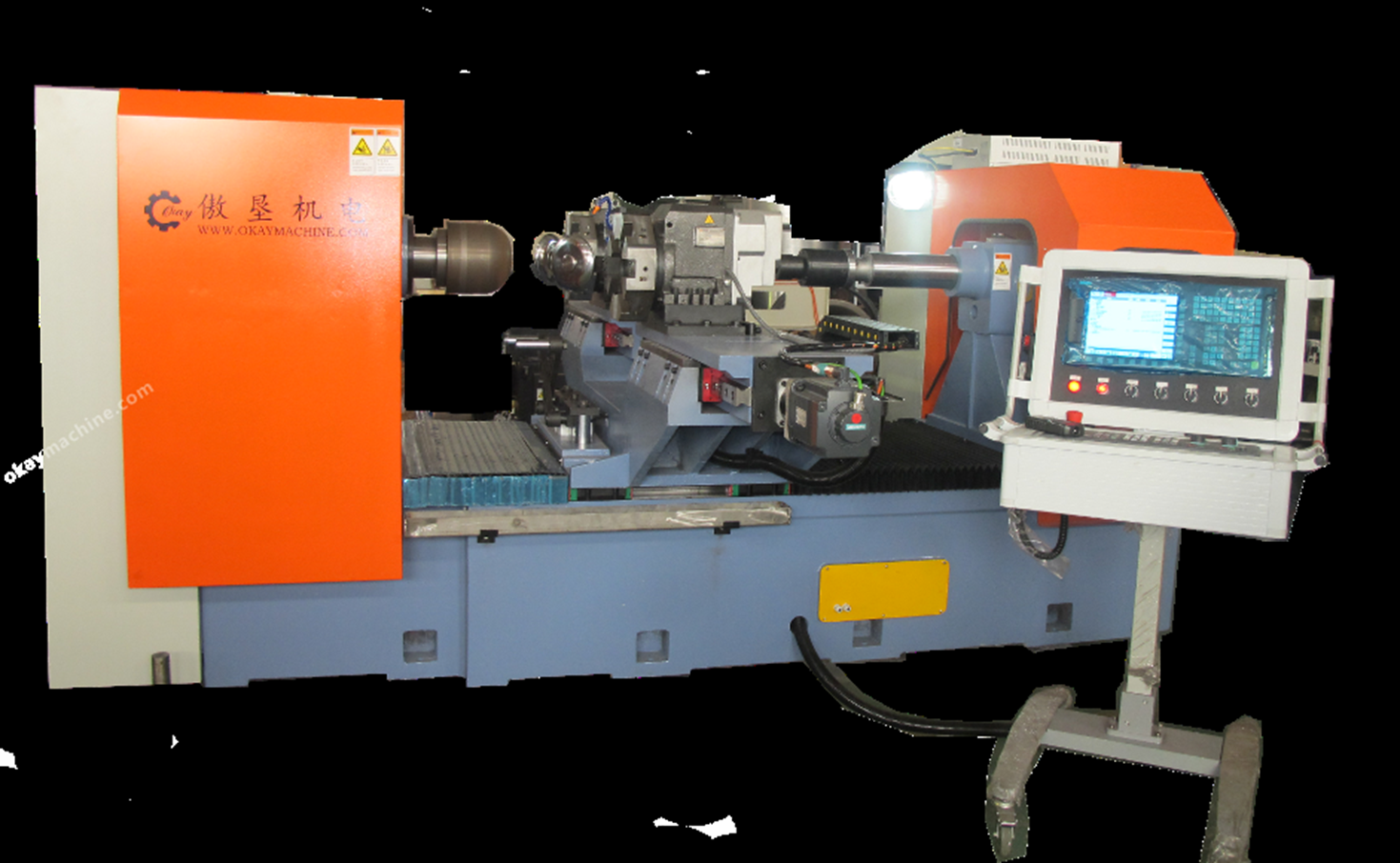

    Our control system adopts Siemens CNC system. It is stable and has worldwide after sale service.

加工方式： 卧式数控旋压
    Processing Style： Horizontal CNC Spinning
原料直径：                                                maxФ800
   Diameter for Raw Materials：                maxФ800
旋压深度：                                               650mm
           Depth for Spinning：                     650mm

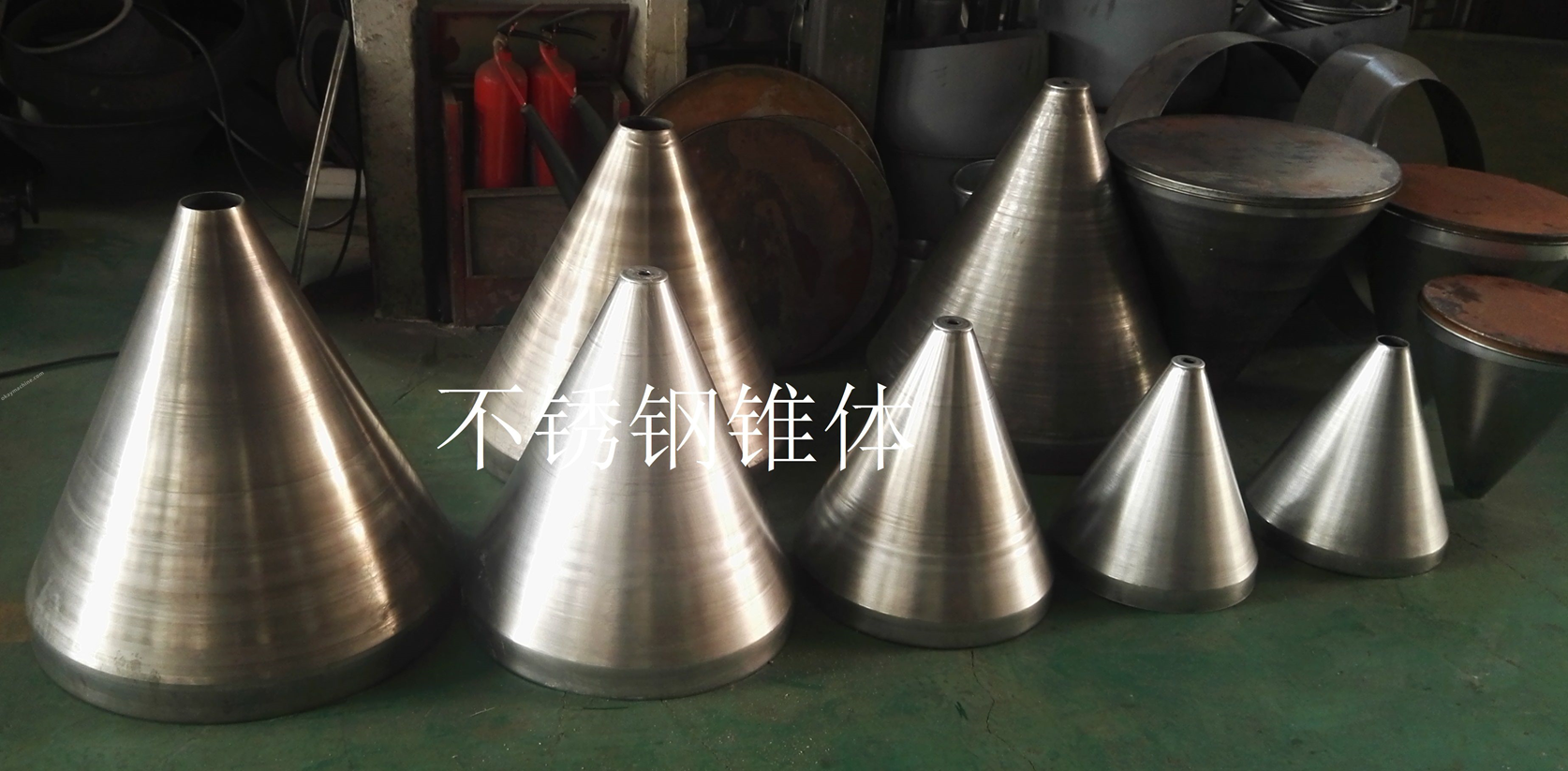

材质：                                                      铝、铜、碳钢、不锈钢等材料
 Raw Materials：                                     Aluminum, Copper, Carbon Steel, stainless steel etc.
厚度范围：
max3.5mm (抗拉强度约是380MPa普碳钢)
max 7mm 铝
Thickness for Raw Materials ：
                                                        Max 3.5mm (tensile strength about 380Mpa, Carbon steel)
Max 7mm      Aluminum
技术指标Technical Specification:
X轴向位移X Axial Displacement:                         900mm
Z轴向位移Z Axial Displacement:                         400mm
X、Z移动速度X、Z Speeds: max                        6m/min
X、Z轴额定推力X、Z Rated thrust:                   50KN
轴向定位精度Axial Positioning Accuracy:            0.04mm
重复精度Repeat Positioning Accuracy:               0.02mm
主轴转速Spindle Speed：                              10—1000rpm

硬件配置Machine Configuration:
控制方式：                                                           西门子828D数控系统
Control Style：                                                     SIEMENS  828D CNC System
进给动力：                                                           西门子伺服电机1FK7系列
Feed Power：                                               SIEMENS Servo Motor 1FK7
驱动控制：                                                           西门子G120
Driven Control：                                     SIEMENS  G120
主轴动力：                                                          18.5--22KW交流电机78
Power for Spindle：                                            18.5--22KW 3Phase AC Motor
主轴控制：                                                          30kw西门子440系列变频器
Spindle Control：                                                30kw SIEMENS 440 Series Frequency Converter

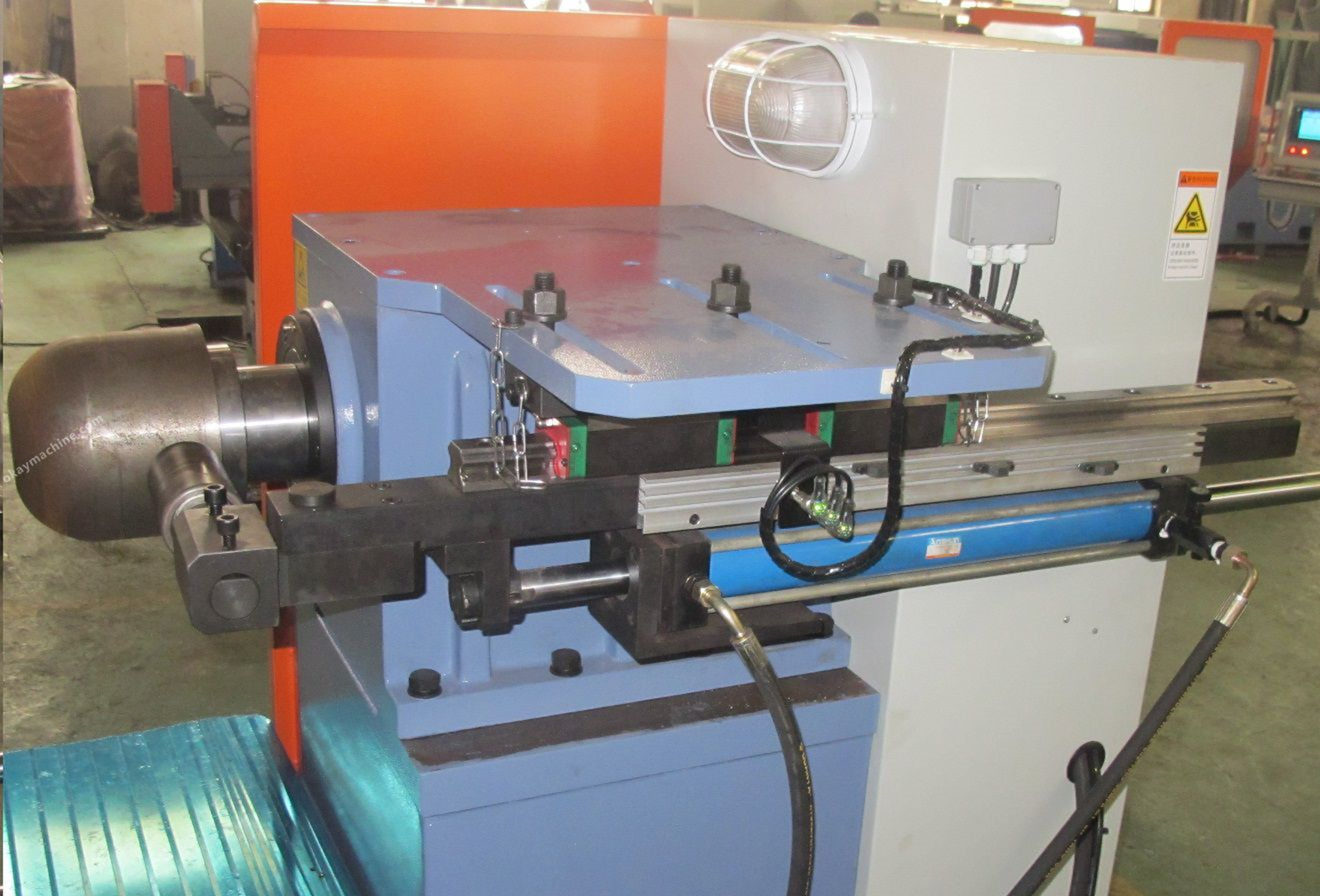

尾座：                                                                  液压缸伸缩
Tailstock：                                                           Hydraulic Cylinder
滑台：                                                                  重载直线滑轨;滚珠丝杆
Slider：                                                                Heavy Load Liner Slide;Ball Screw

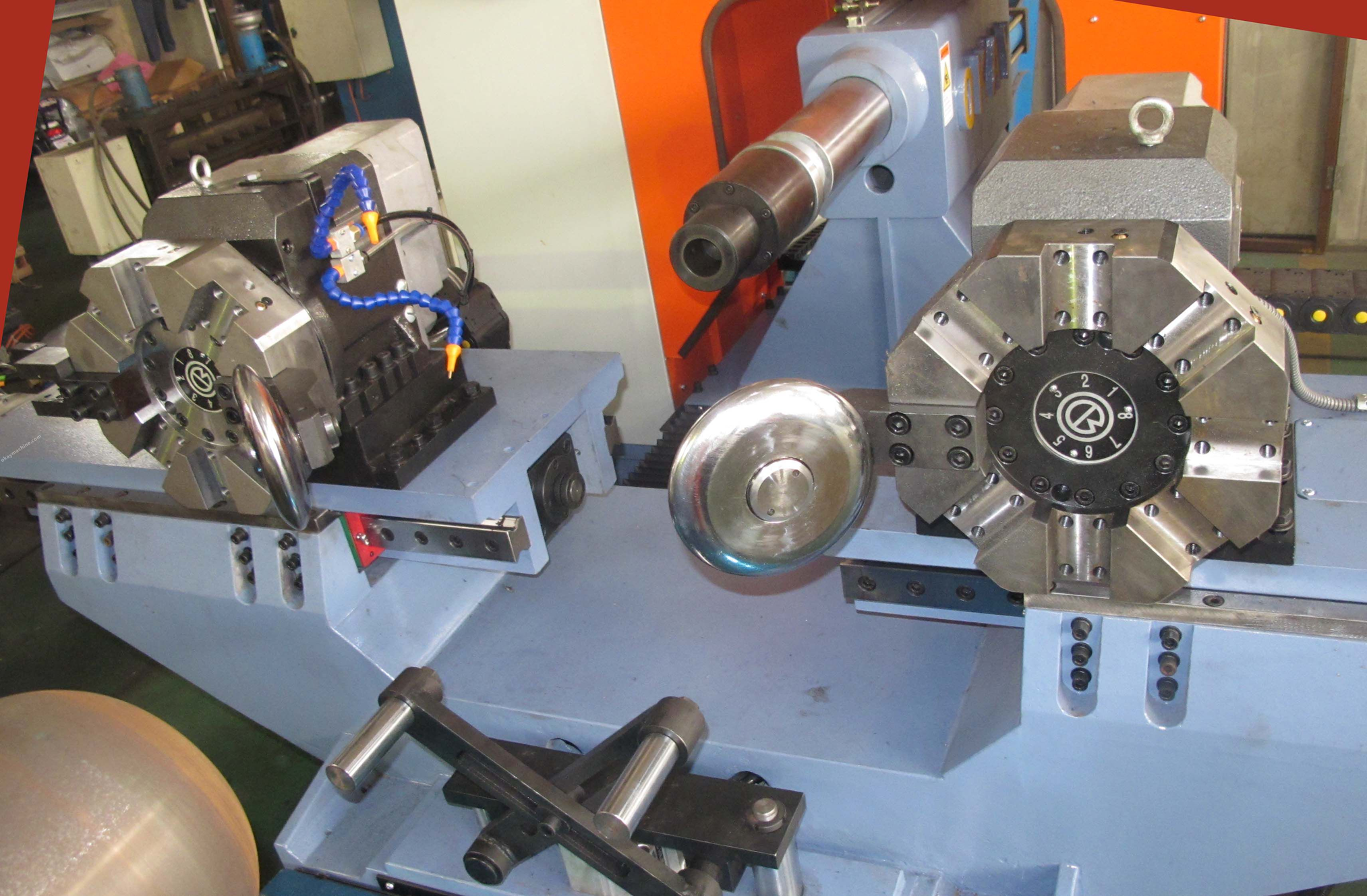

刀架:                                                                    左右各一台8工位电动数控刀架
Toll Turret:                                                     Electromotive 8 tools for both sides
液压站功率:                                                         5.5kw、10MPa，25L/min
Hydraulic Station:                                                5.5kw,  10MPa，25L/min
设备总功率                                                          50KW
Total Power:                                                        50KW
电源电压                                                             380V---480V±5%    50HZ
Power Supply Voltage:                                       380V---480V±5%    50HZ
温度：                                                                  -5～40℃
Environment Temp：                                           -5～40℃
相对湿度：                                                            5%-95%
Relative  Humidity:                                               5%-95%

设备占地                                                       长5000mm*宽3600*高1800mm
Machine Area: L:                                               L 5000mm;W: 3600;H: 1800mm
设备重量 约                                                        4000KG
Weight: About                                                    4000KG

选件：Option:
录返旋压编程系统
Playback Spinning Programming System
通过模拟人工旋压轨迹，快捷方便完成旋压程序生成。
By through simulating the spinning tracks, creates the spinning program quickly and conveniently
