This machine is mainly used for cold spinning forming for carbon steel, aluminum, stainless steel and other materials. It is widely used in the fields like hardware, automobiles, fans, military & construction machinery, etc. The machine can fufil the spinning, shrinking, expanding, trimming, curling, turning in one process. Comparing with the traditional  drawing process, Spinning can dramatically save the cost for moulds, shorten the cycle for developing new products and reduce the defects for many paths when deep drawing. The spinning has great advantages like low cost, and rapid to develop new products and good surface of the finial products, etc.

     We adopt modular designation in our machine, therefore, have the advantages of easy operation, maintenance and repair.
     We also designed and developed the first domestic spinning programming software,《SPINNINGCAD》V2.0. It can help you programming for the new spinning products with conveniences, speediness and no errors.
    Our control system adopts Siemens CNC system. It is stable and has worldwide after sale service.

       Programming Softer《SPINNINGCAD》 Patent No.：201110079764.0
       CNC Metal Spinning Machine          Patent No.：201120092361.5

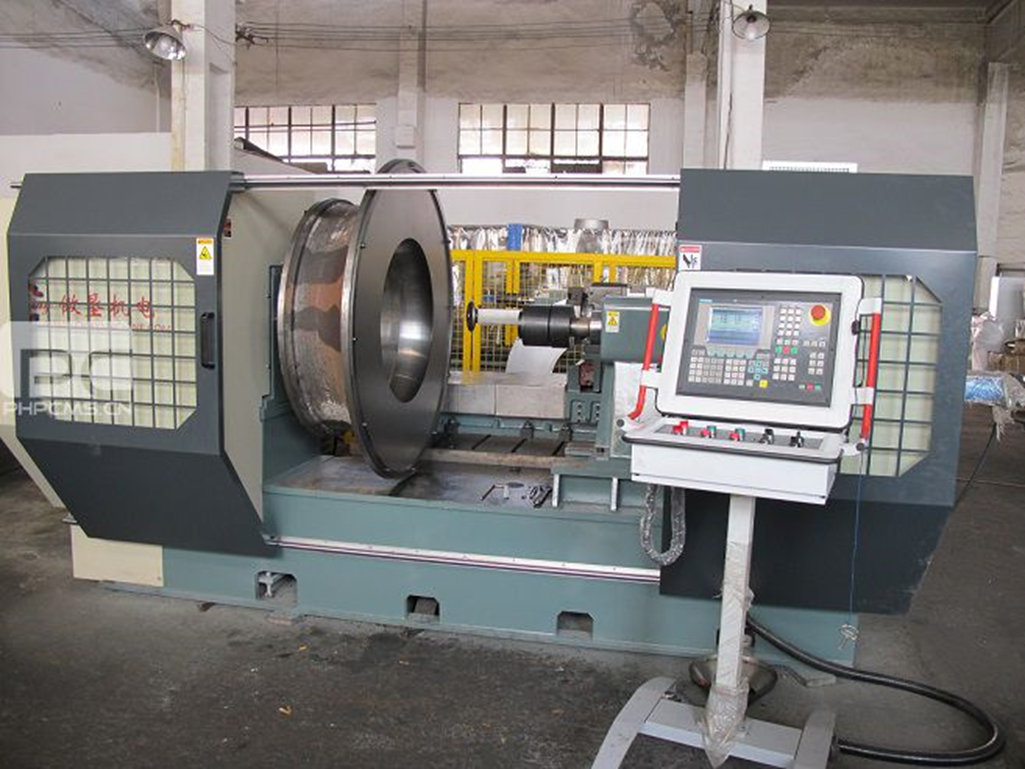

   Processing Style： Horizontal CNC Spinning
   Diameter for Raw Materials：           maxФ1300
   Depth for Spinning：                        600mm
   Raw Materials：                               Aluminum, Copper, Carbon Steel, stainless steel etc.
   Thickness for Raw Materials ：
                                                            Max 5mm (tensile strength about 380Mpa, Carbon steel)

Technical Specification:
 Axial Displacement:                           500mm
Z Axial Displacement:                         800mm
X、Z Speeds: max                              6m/min
X、Z Rated thrust:                              80KN
Distance between centres                  1100mm
Axial Positioning Accuracy:                 0.04mm
Repeat Positioning Accuracy:             0.02mm
Spindle Speed：                                 50—800rpm

Machine Configuration:

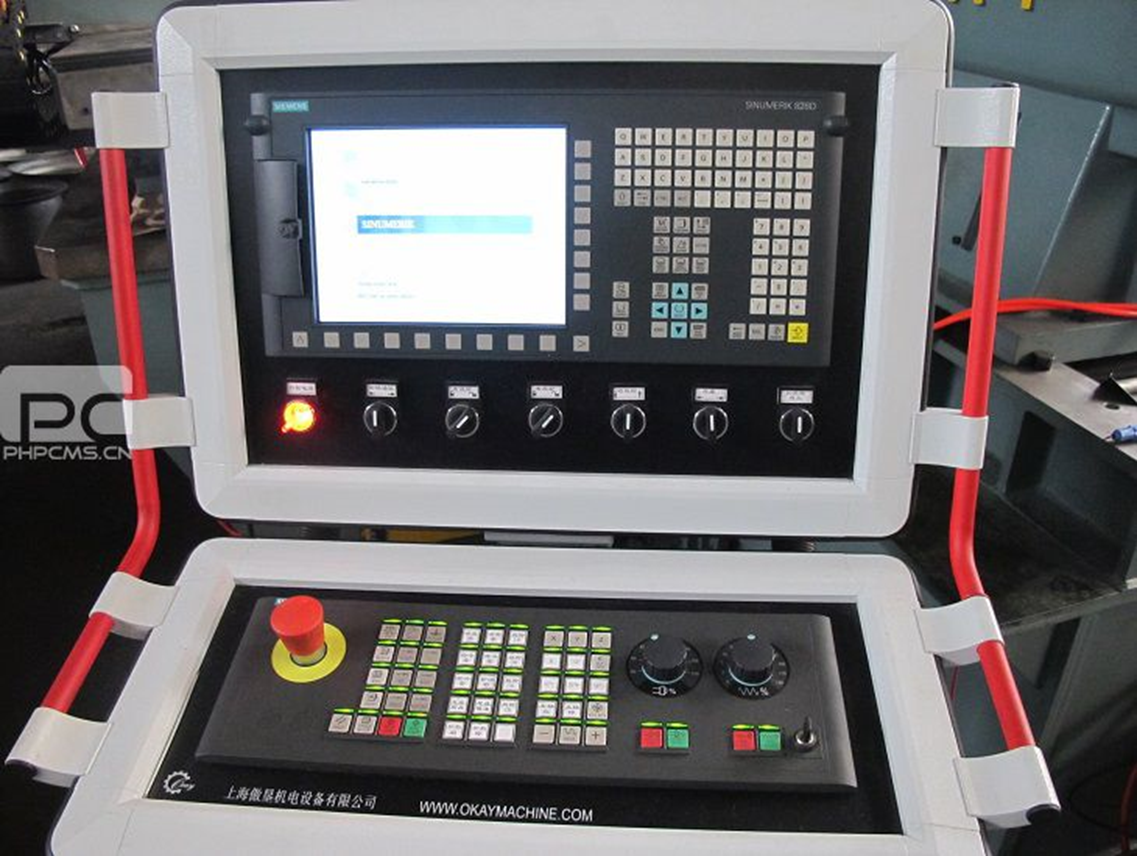

Control Style：                                    SIEMENS  828D CNC System
Feed Power：                                     SIEMENS Servo Motor 1FK7
Driven Control：                                 SIEMENS  S120
Power for Spindle：                            30KW 3Phase AC Motor
Spindle Control：                                30kw SIEMENS 440 Series Frequency Converter

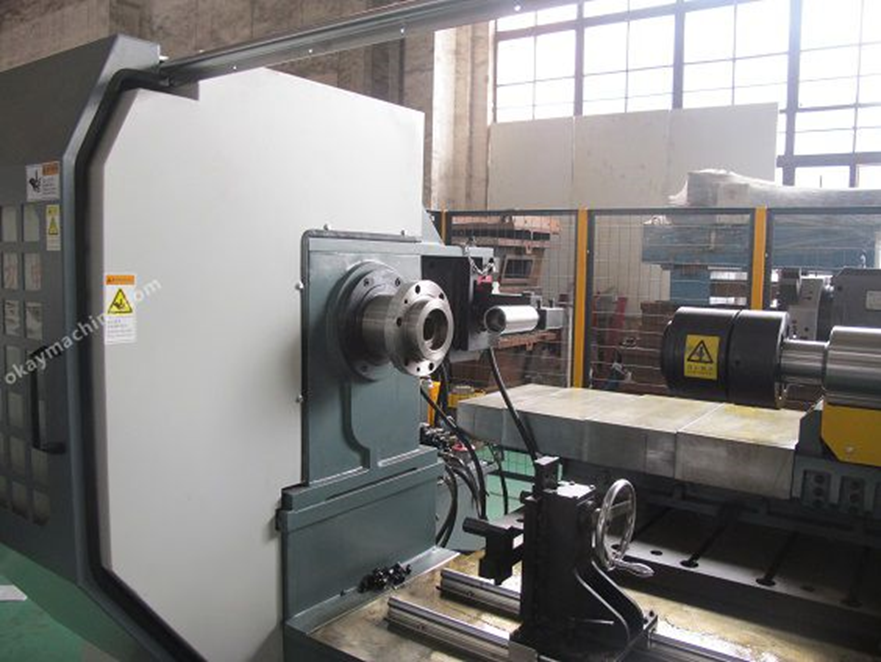

Tailstock：                                           Hydraulic Cylinder
Slider：                                                Heavy Load Liner Slide;Ball Screw

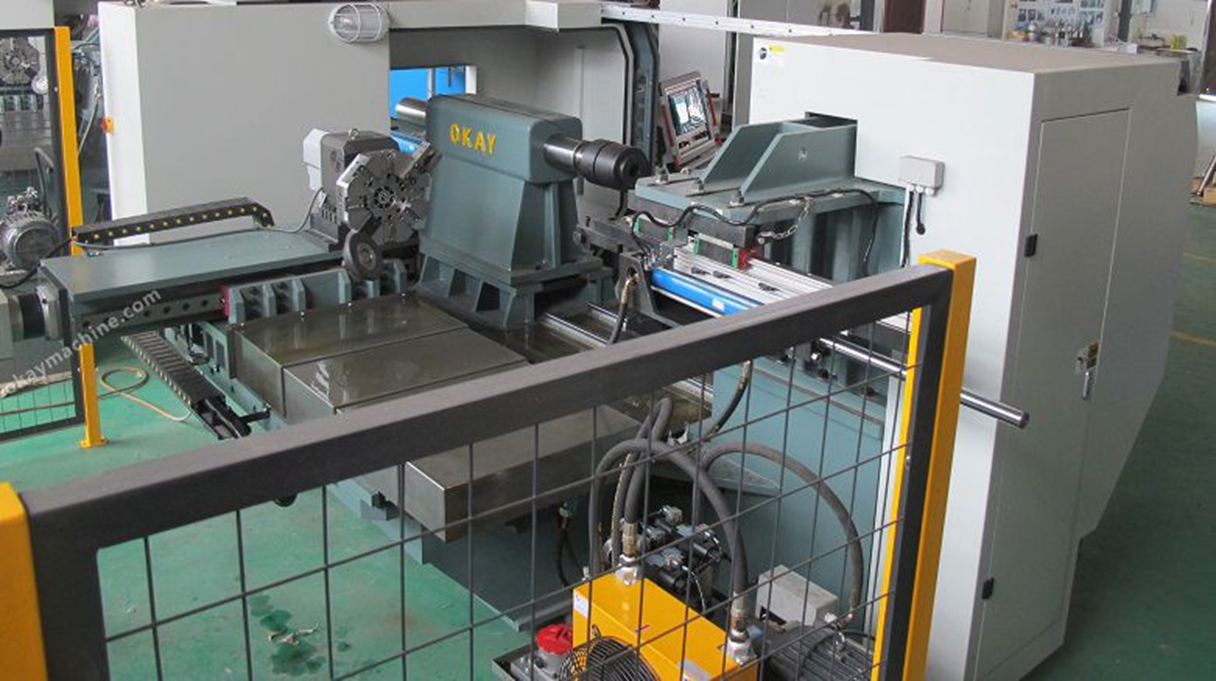

Toll Turret:                                           Electromotive 8 tools
Hydraulic Station:                                3.75kw,  10MPa，25L/min
Total Power:                                        55KW
Power Supply Voltage:                        380V---480V±5%    50HZ
Environment Temp：                           -5～40℃
Relative  Humidity:                                5%-95%

Machine Area: L:                                   L 5500mm;W: 2700;H: 2000mm
Weight: About                                        8500KG
