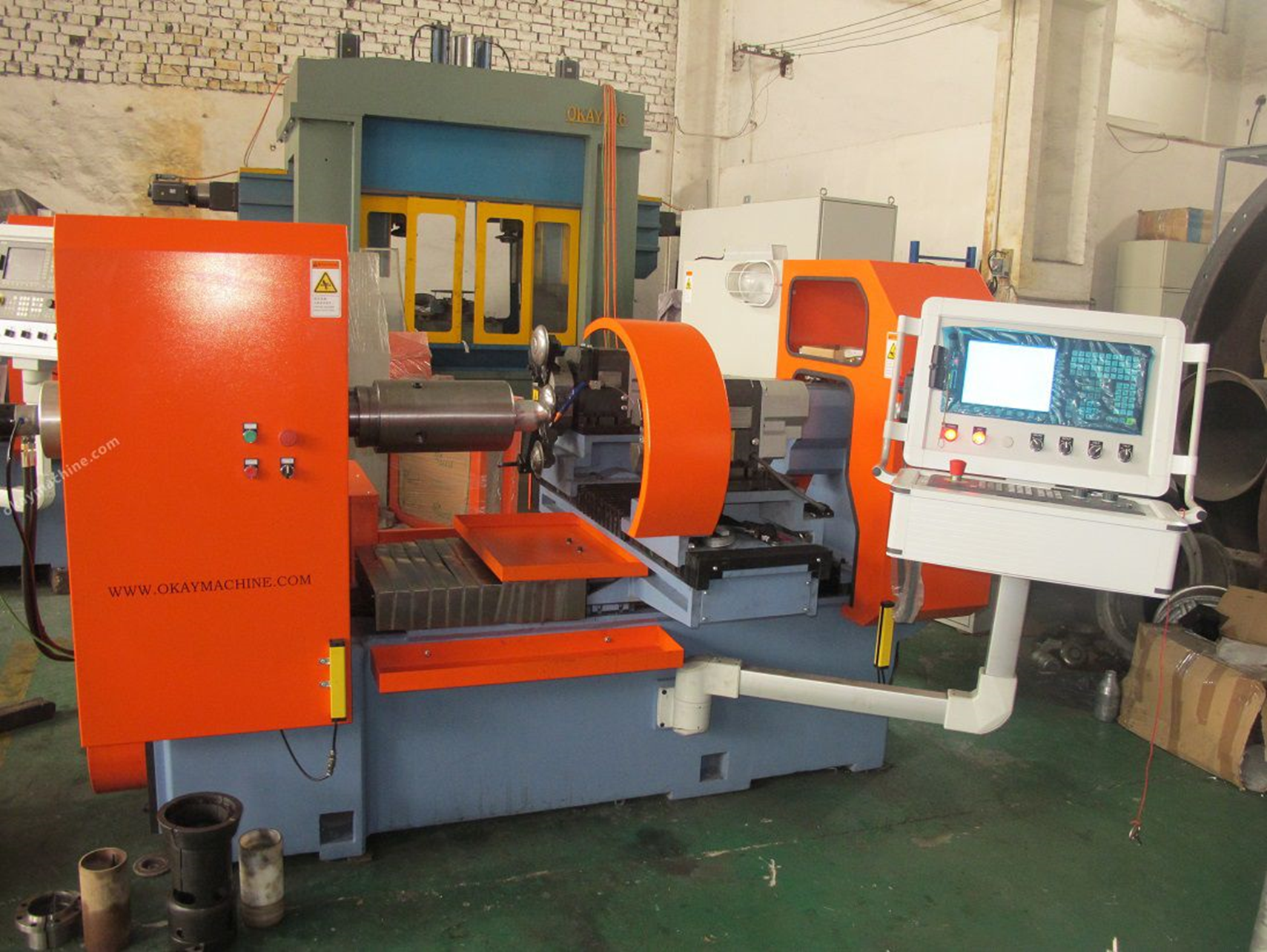

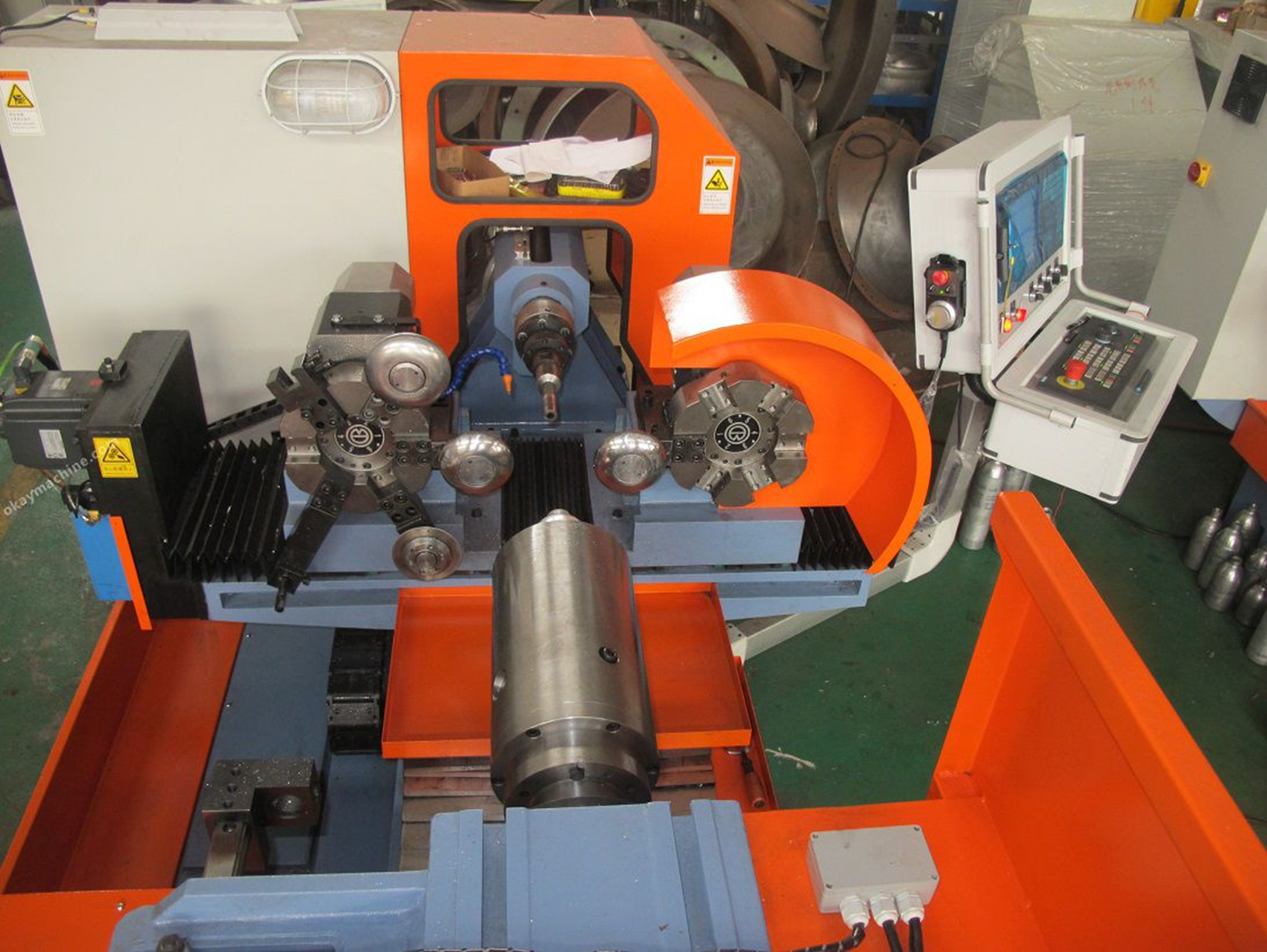

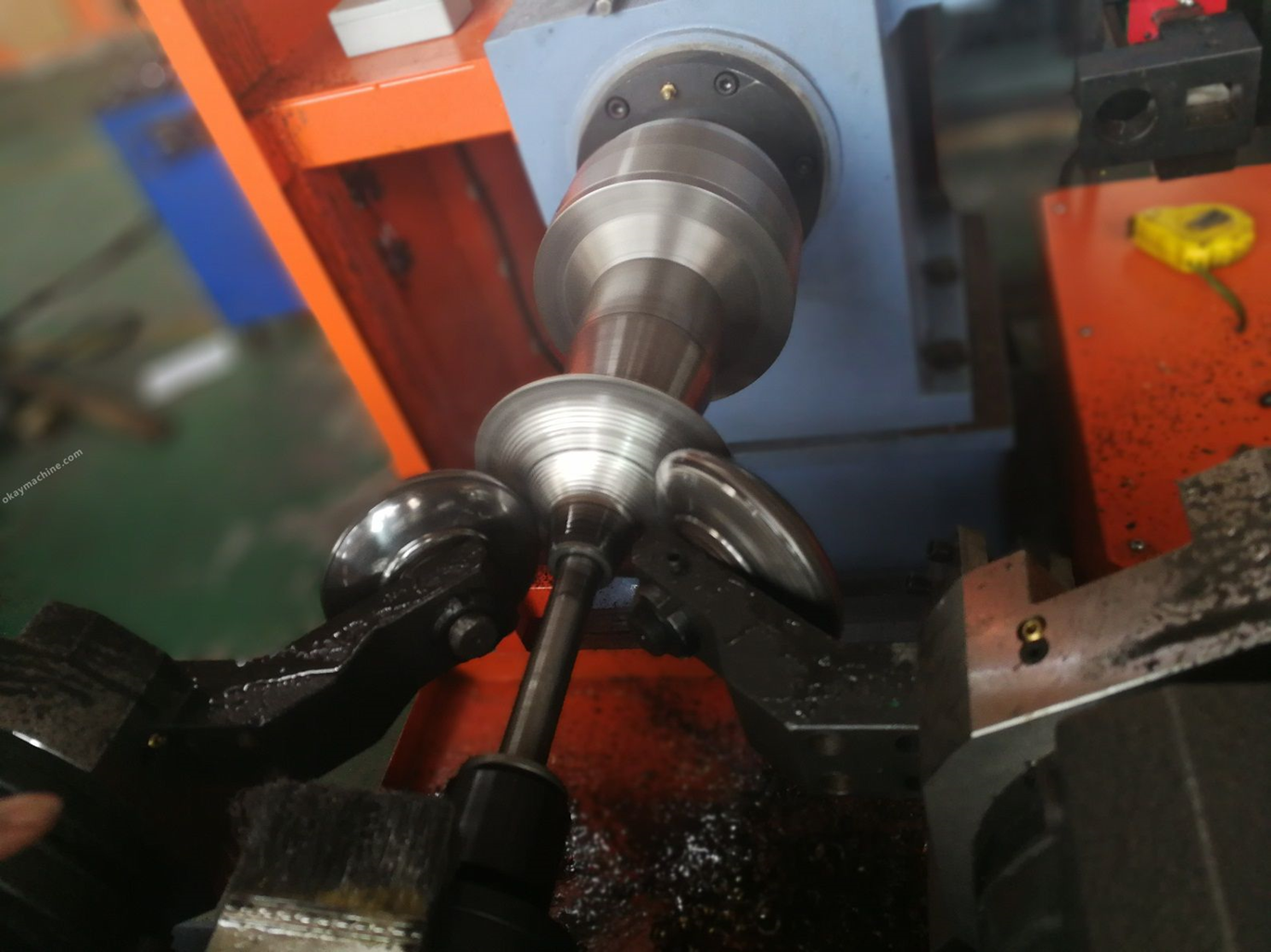

OKAYD500 2-Wheel CNC Spinning Machine
简要描述:Okay D500 is mainly used for cold spinning forming for carbon steel, aluminum, stainless steel and other materials It is widely used in the fields like hardware, automobiles, fans, military & construction machinery, etc
服务承诺:品质保证 按时发货
购买热线:021-56781370
产品介绍

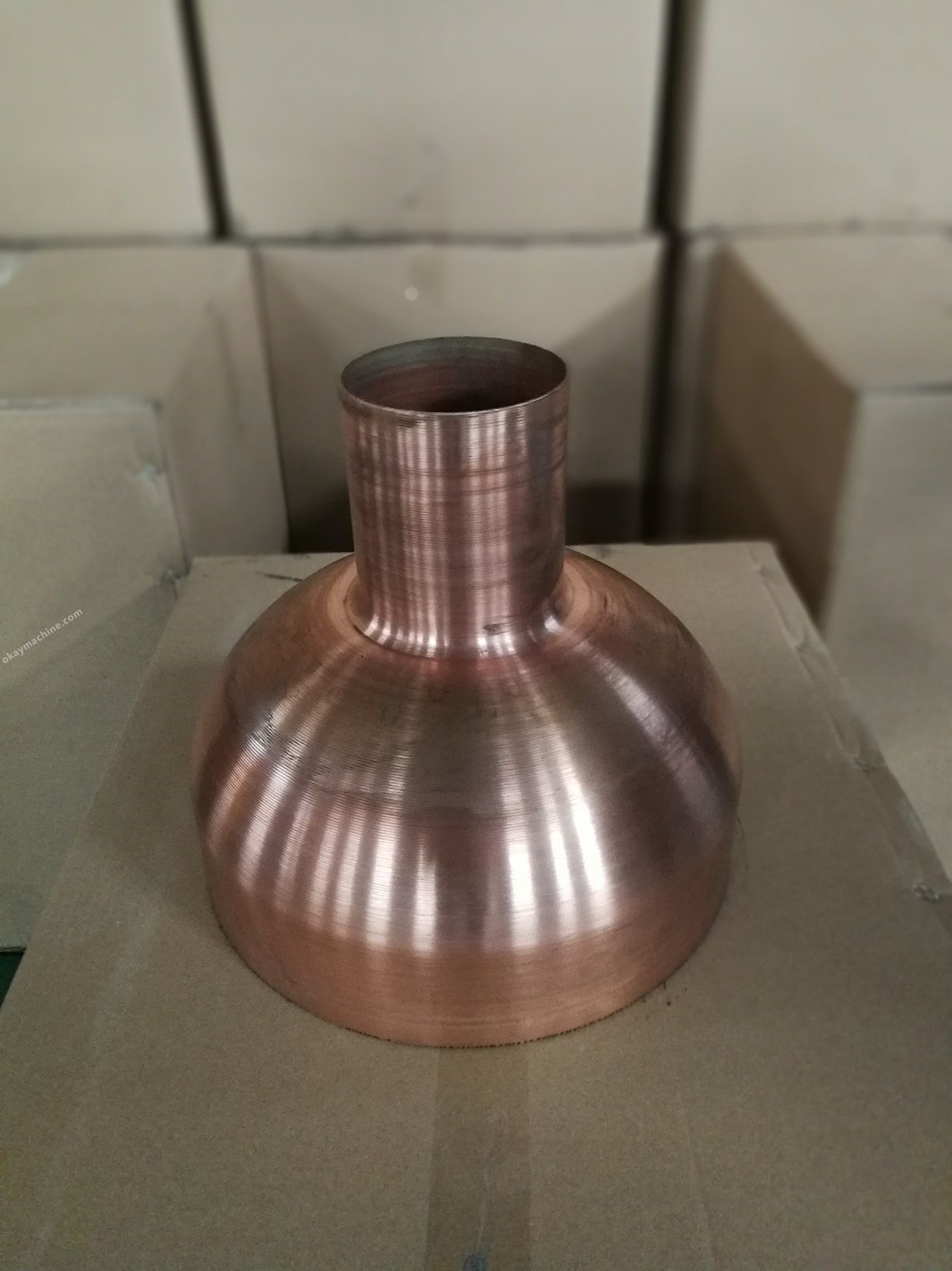

This machine is mainly used for cold spinning forming for carbon steel, aluminum, stainless steel and other materials. It is widely used in the fields like hardware, automobiles, fans, military & construction machinery, etc. The machine can fufil the spinning, shrinking, expanding, trimming, curling, turning in one process. Comparing with the traditional drawing process, Spinning can dramatically save the cost for moulds, shorten the cycle for developing new products and reduce the defects for many paths when deep drawing. The spinning has great advantages like low cost, and rapid to develop new products and good surface of the finial products, etc.
     We adopt modular designation in our machine, therefore, have the advantages of easy operation, maintenance and repair.
     We also designed and developed the first domestic spinning programming software,
SPINNINGCADV2.0. It can help you programming for the new spinning products with conveniences, speediness and no errors.
    Our control system adopts Siemens CNC system. It is stable and has worldwide after sale service.

加工方式: 卧式数控旋压
    Processing Style
Horizontal CNC Spinning
原料直径:                                                maxФ500
   Diameter for Raw Materials
               maxФ500
旋压深度:                                               700mm
           Depth for Spinning
                    700mm
材质:                                                      铝、铜、碳钢、不锈钢等材料
 Raw Materials
                                    Aluminum, Copper, Carbon Steel, stainless steel etc.
厚度范围:
Max2.2mm (
抗拉强度约是380MPa普碳钢)
max 5.0mm

Thickness for Raw Materials

                                                        Max 2.2mm (tensile strength about 380Mpa, Carbon steel)
Max 5.0mm   Aluminum
技术指标Technical Specification:
X
轴向位移X Axial Displacement:                         250mm
Z
轴向位移Z Axial Displacement:                         800mm
X
Z移动速度XZ Speeds: max                        5m/min
X
Z轴额定推力XZ Rated thrust:                   30KN
轴向定位精度Axial Positioning Accuracy:            0.02mm
重复精度Repeat Positioning Accuracy:               0.02mm
主轴转速Spindle Speed                              10—1500rpm

硬件配置Machine Configuration:
控制方式:                                                           西门子808D数控系统
Control Style
                                                     SIEMENS  808D CNC System
进给动力:                                                           西门子伺服电机1FL6系列
Feed Power
                                               SIEMENS Servo Motor 1FL6
驱动控制:                                                           西门子V70
Driven Control
                                    SIEMENS  V70
主轴动力:                                                          7.5KW交流电机
Power for Spindle
                                          7.5KW 3Phase AC Motor
主轴控制:                                                          7.5kw西门子G120系列变频器
Spindle Control
                                               7.5kw SIEMENS G120 Series Frequency Converter
尾座:                                                                  液压缸伸缩
Tailstock
                                                           Hydraulic Cylinder
滑台:                                                                  重载直线滑轨;滚珠丝杆
Slider
                                                                Heavy Load Liner Slide;Ball Screw
刀架:                                                                    左右各一台6工位电动数控刀架
Toll Turret:                                                     Electromotive 6 tools for both sides
液压站功率:                                                         6MPa15L/min
Hydraulic Station:                                               6MPa
15L/min
设备总功率                                                          18KW
Total Power:                                                        18KW
电源电压                                                             380V---480V±5%    50HZ
Power Supply Voltage:                                       380V---480V±5%    50HZ
温度:                                                                  -540
Environment Temp
                                           -540
相对湿度:                                                            5%-95%
Relative  Humidity:                                               5%-95%

设备占地                                                       3100mm*2000*1800mm
Machine Area: L:                                               L 3100mm;W: 2000;H: 1800mm
设备重量                                                        3800KG
Weight: About                                                    3800KG









选件:Option:
录返旋压编程系统
Playback Spinning Programming System
通过模拟人工旋压轨迹,快捷方便完成旋压程序生成。
By through simulating the spinning tracks, creates the spinning program
quickly and conveniently
