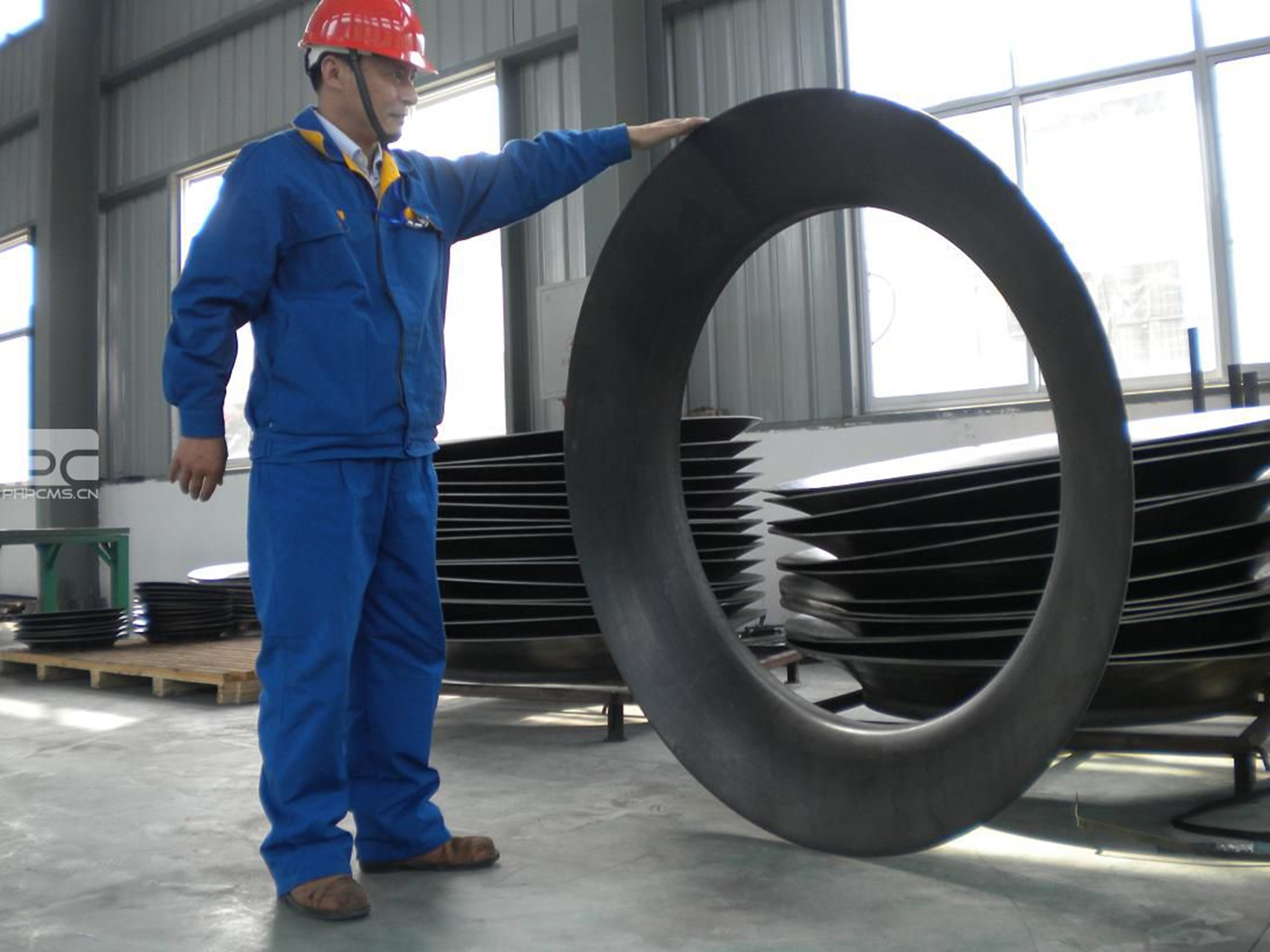

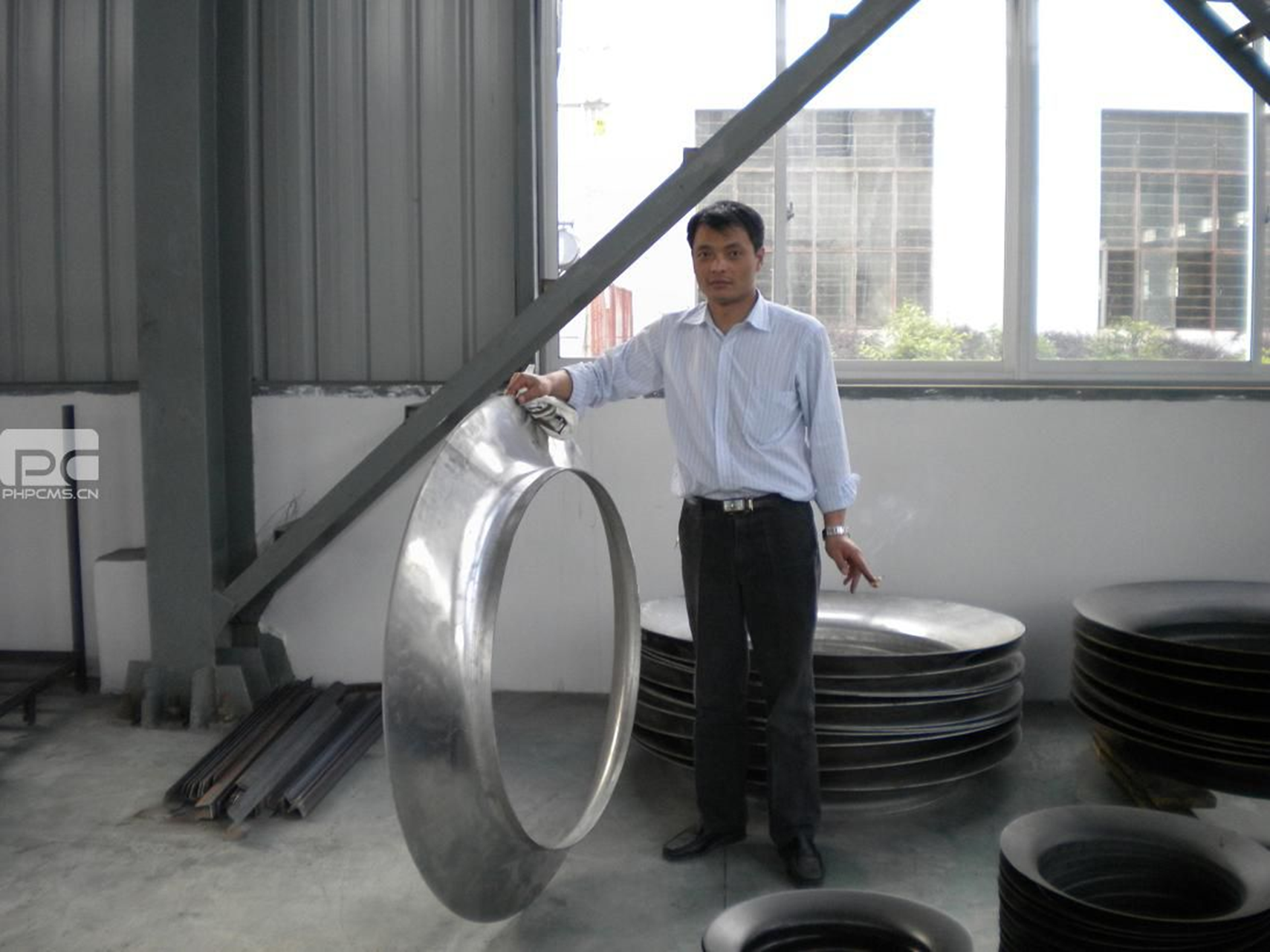

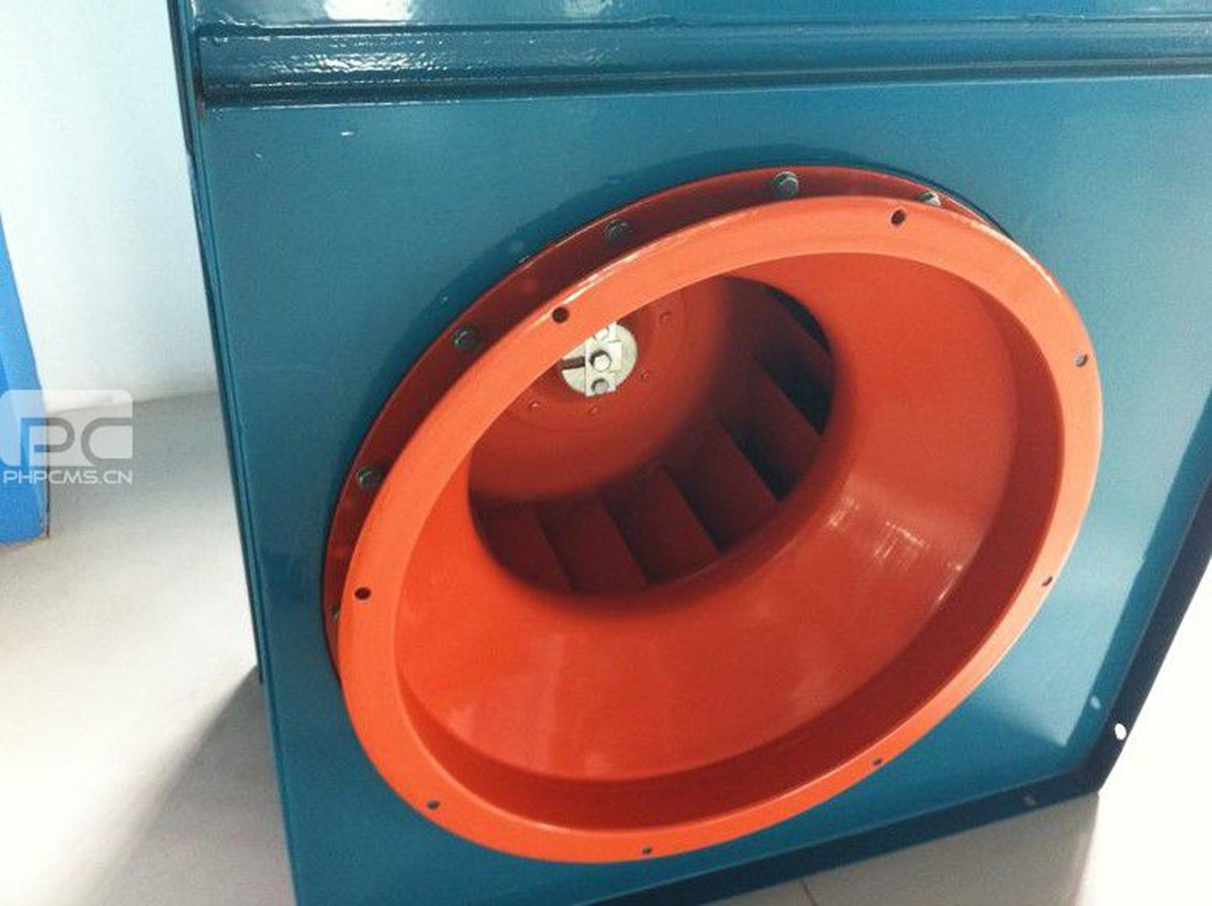

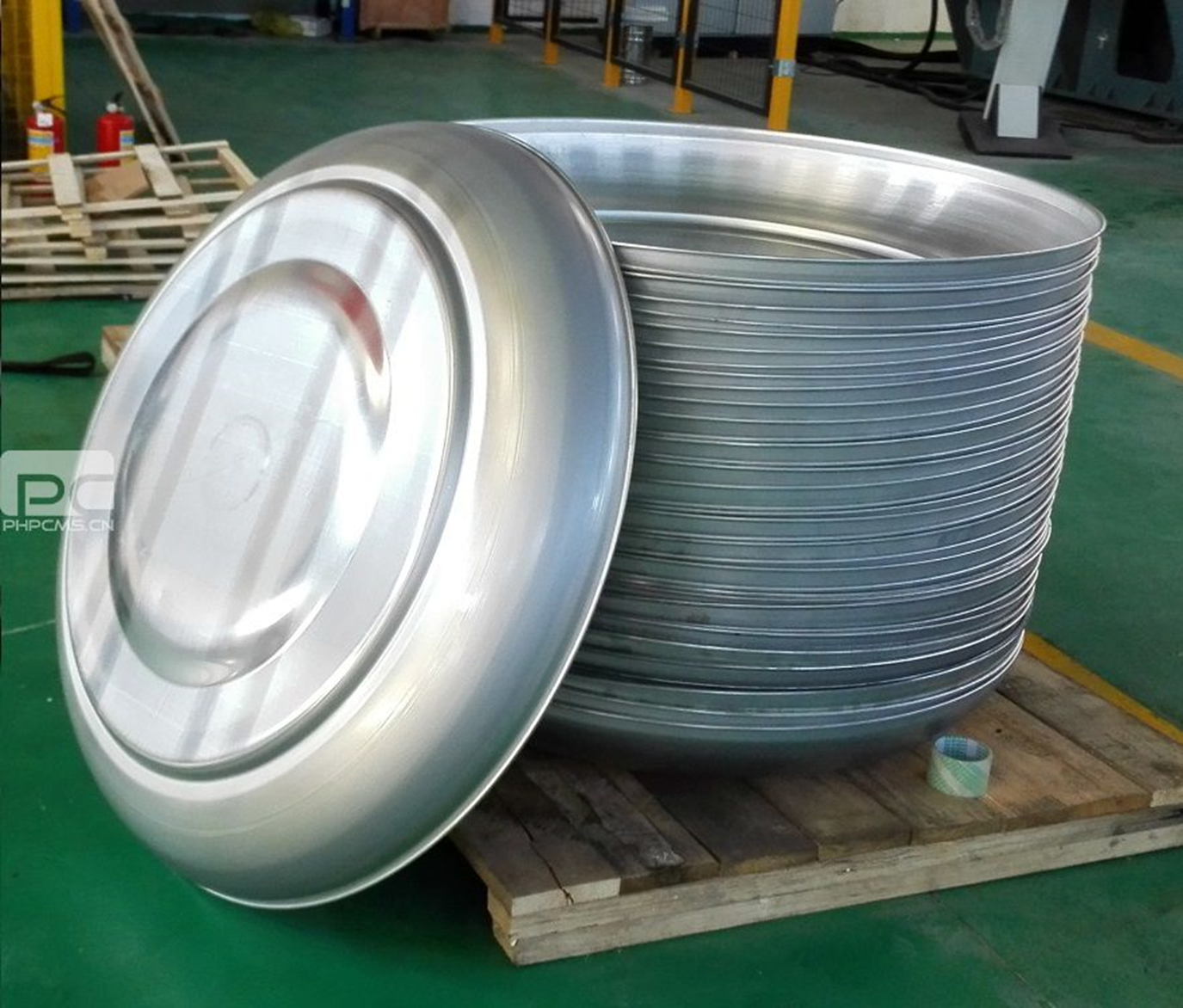

Our Spinning machine is widely used In fan industry,  which can make air inlet, front disk, cowl etc parts. Our standard machine is OKAY-1000, OKAY-1400 and OKAY-1600 in fan industry.

Our spinning machine advantages is high efficiency, great reliability, Long life time. We have machines are used for seven years without any repairment , which are still running in production.


OKAY 1000

OKAY1400

OKAY 1600

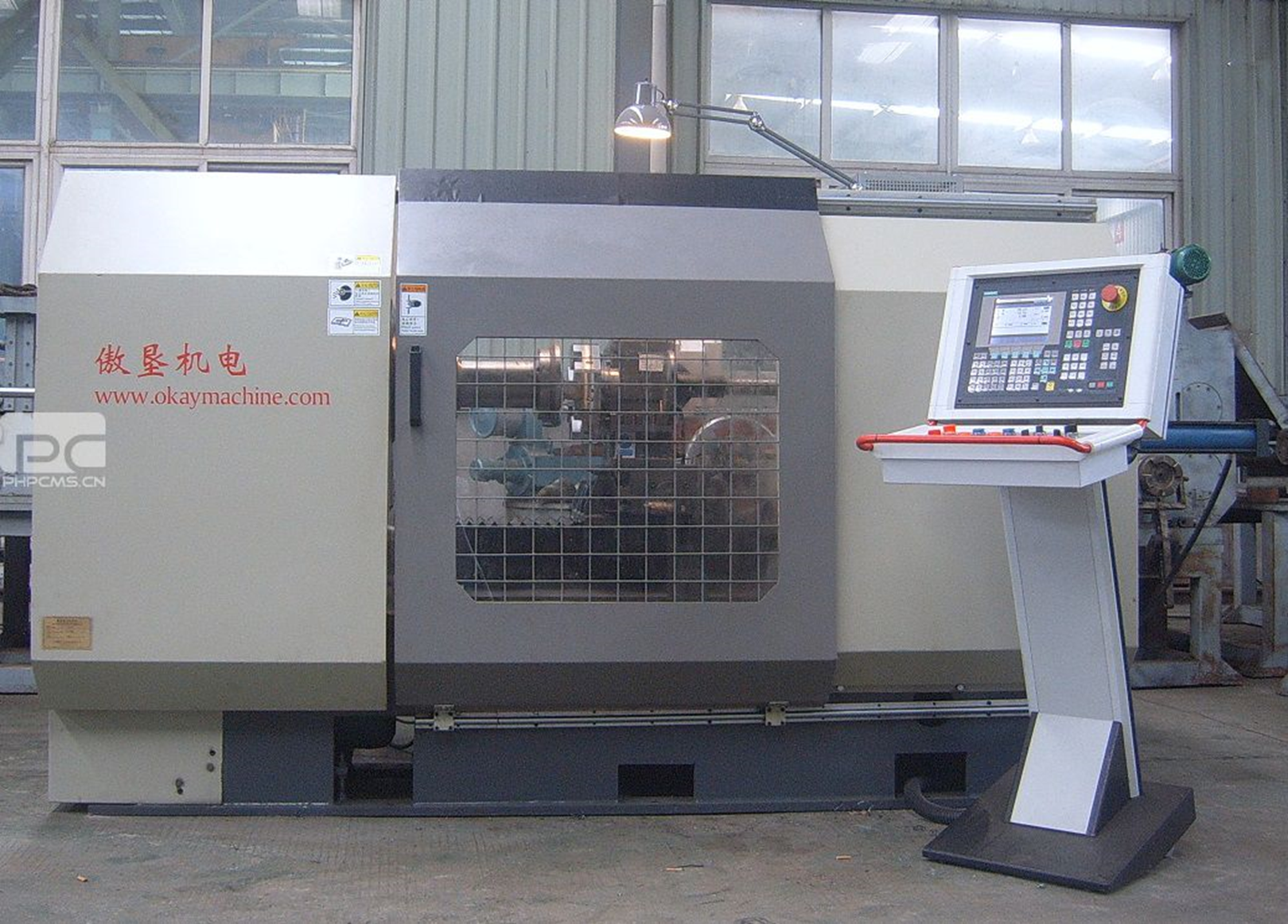

OKAY-1000
     Dia≤1150mm
     Depth≤600mm
     Material     ： Aluminum, Copper, Steel、Stainless Steel
     Material Thickness:  ≤3mm (Steel, material yield strength about 380Mpa)
                                 ≤5mm(Aluminum, material yield strength about 230Mpa)
    Feed force:   40KN
    Spindle Speed:    0—800rpm
    Siemens 828D

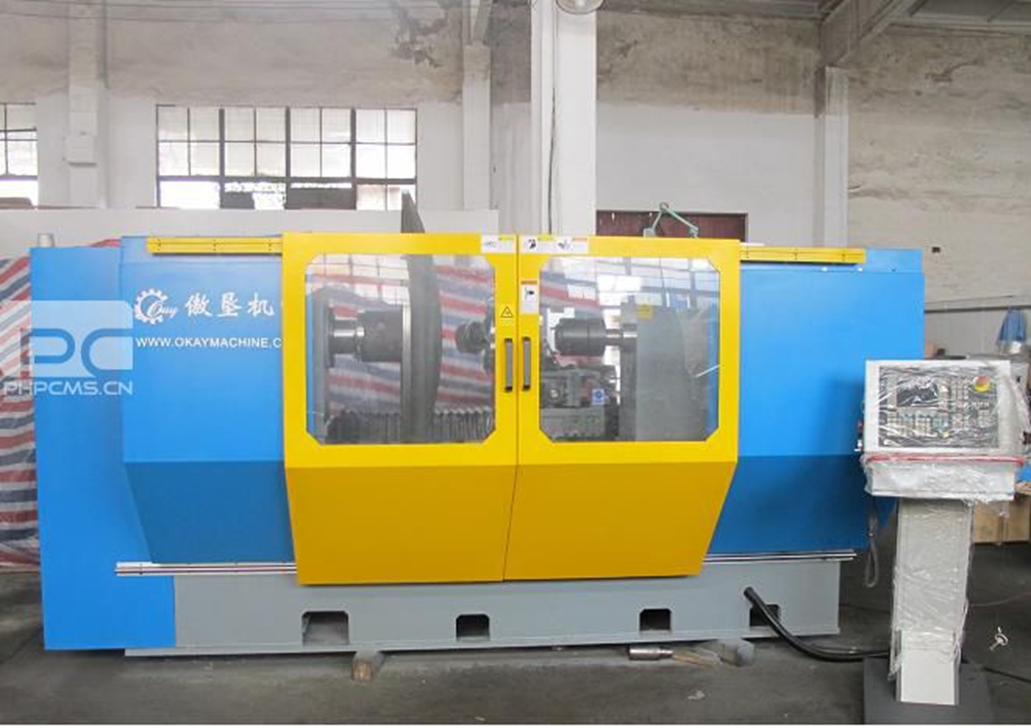

OKAY-1400
    Dia≤1450mm
    Depth≤700mm
    Material     ： Aluminum, Copper, Steel、Stainless Steel
    Material Thickness:  ≤5mm (Steel, material yield strength about 380Mpa)
                                 ≤10mm(Aluminum, material yield strength about 230Mpa)
    Feed force: 80KN
    Spindle Speed:    0—800rpm
    Siemens  828D

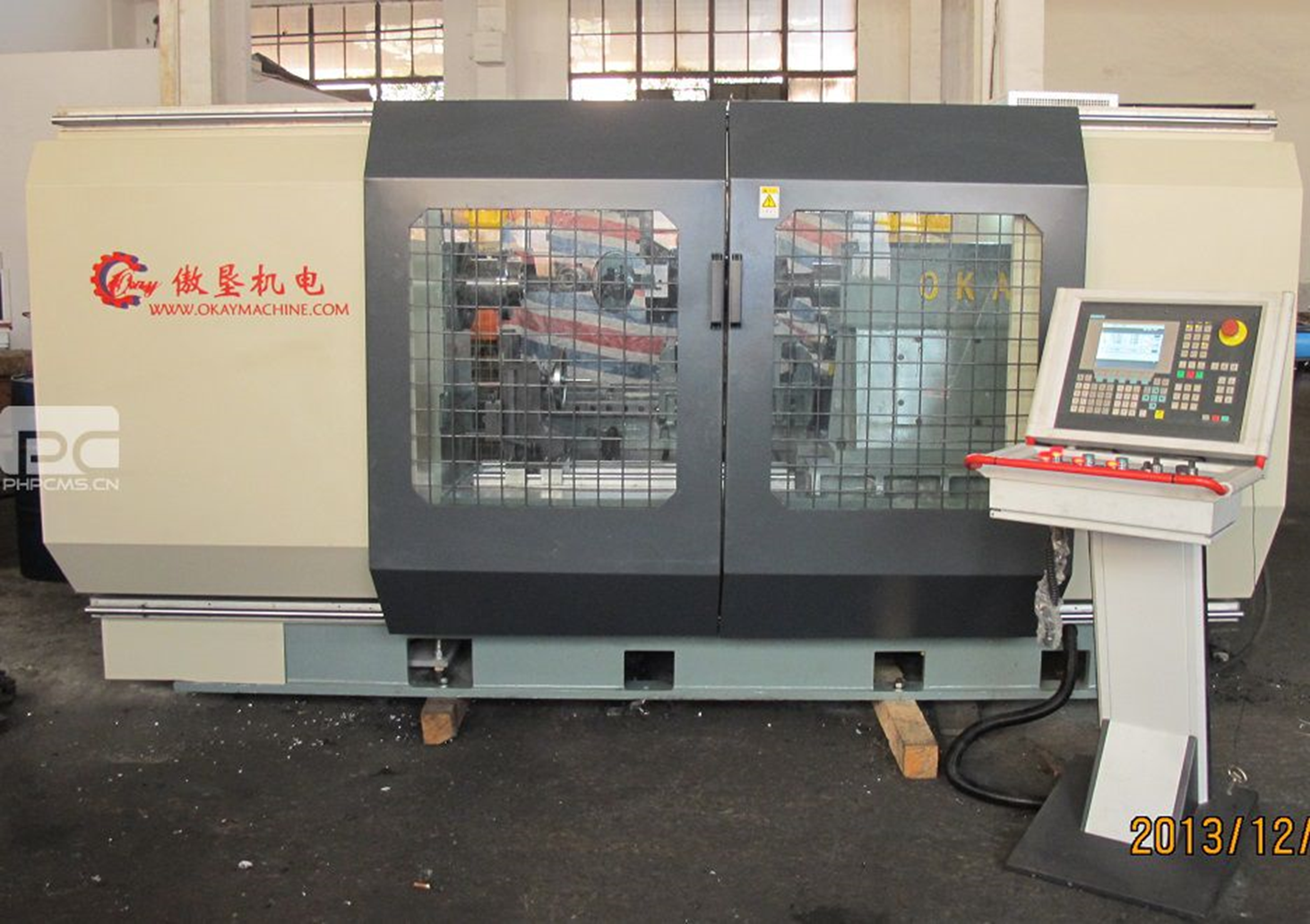

OKAY-1600
    Dia≤1650mm
    Depth≤800mm
    Material     ： Aluminum, Copper, Steel、Stainless Steel
    Material Thickness:  ≤5mm (Steel, material yield strength about 380Mpa)
                                 ≤10mm(Aluminum, material yield strength about 230Mpa)
   Feed force: 80KN
   Spindle Speed:    0—500rpm
   Siemens  828D 70

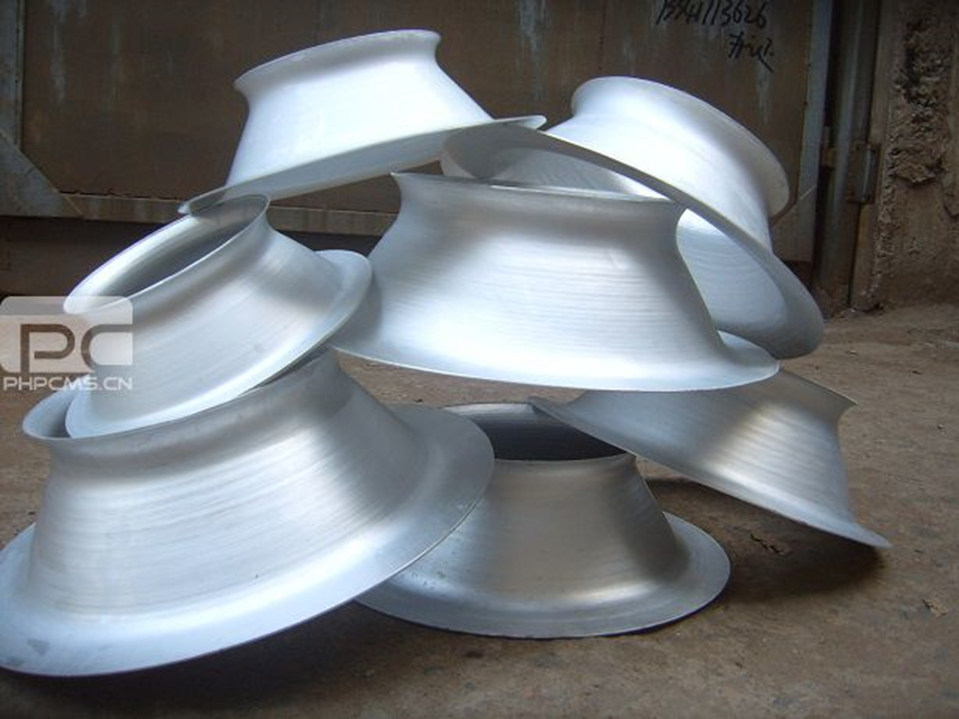

         We have much spinning  experience for lots of fan company. We are very familiar with famous fan company's product, which help you to make your product very quickly.  We also have the experience for air inlet spinning without mold, many air inlets can be made

Data of machine

http://39.104.177.126:555/uploadfile/2015/1010/20151010032047444.pdf
